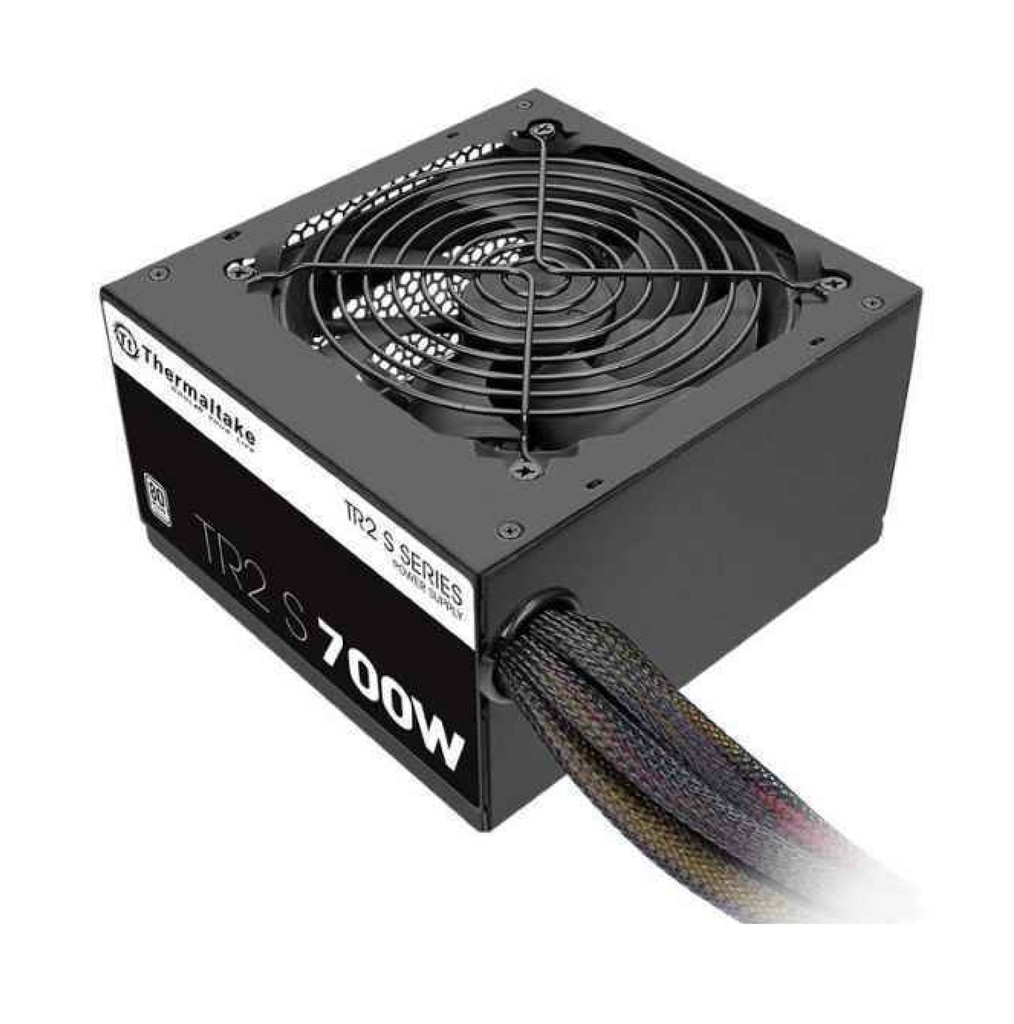

Thermaltake PC power supply TR2 S - 700W 80 Plus - PS-TRS-0700NPCWEU-2
Thermaltake TRS-700AH2NK. Gesamtleistung: 700 W, AC Eingangsspannung: 230 V, AC Eingangsfrequenz: 50 - 60 Hz. Motherboard Anschlussstecker: 20+4 pin ATX, Kabeltyp: Nicht-modular. Zweck: PC, Stromversorgungseinheit (PSU) Formfaktor: ATX, 80 Plus Zertifizierung: 80 PLUS. Produktfarbe: Schwarz, Kühlung: Aktiv, Lüfterdurchmesser: 12 cm. Zertifizierung: CE/CB/TUV
SKU :
180114Code-barres :
4717964401908MPN :
PS-TRS-0700NPCWEU-2Catégorie de produits du site web :
Power Supply Units (PSUs)General:
- Brand: Thermaltake
- P/N: PS-TRS-0700NPCWEU-2
Energy
- Overall performance: 700W
- AC input voltage: 230V
- AC input frequency: 50 - 60 Hz
- Input current: 9A
- Power factor correction filter (PFC): Active
- Combined current (+3.3V): 120W
- Combined current (+12V): 648W
- Combined current (+5V): 120W
- Combined current (-12V): 6W
- Combined current (+5Vsb): 12.5W
- Max. output current (+3.3V): 24A
- Max. output current (+12V): 54 A
- Max output current (+5V): 17A
- Max. output current (-12V): 0.5A
- Max. output current (+5Vsb): 2.5A
- Holding time: 16ms
- Efficiency: 86%
Cooling
- Fan diameter: 12cm
- Number of fans: 1 fan
- Fan placement: Above
- Fan speed: 1800
- cooling: Active
Connections and interfaces
- Motherboard connector: 20+4 pin ATX
- Number of Molex connectors 4pin: 5
- Number of SATA power connectors: 6
- Number of PCI Express power connectors 6+2pin: 2
- CPU connector (4+4 pin): Yes
- ATX power connector (20+4 pin): Yes
- Floppy drive connector: Yes
Performance
- Purpose: PC
- Power Supply Unit (PSU) Form Factor: ATX
- ATX version: 2.3
- Mean time between failures (MTBF): 100000 hours
Design
- Product color: Black
- Operating conditions
- Operating temperature range: 5 - 40 °C
- Storage temperature range: -40 - 55 °C
- Humidity in operation: 20 - 85%
- Humidity during storage: 10 - 95%
Weight & Dimensions
- Width: 150mm
- depth: 140mm
- Height: 86mm
Certificates
- 80 Plus Certification: 80PLUS
- Certification: CE/CB/TUV
Packaging information
- Packaging type: box
