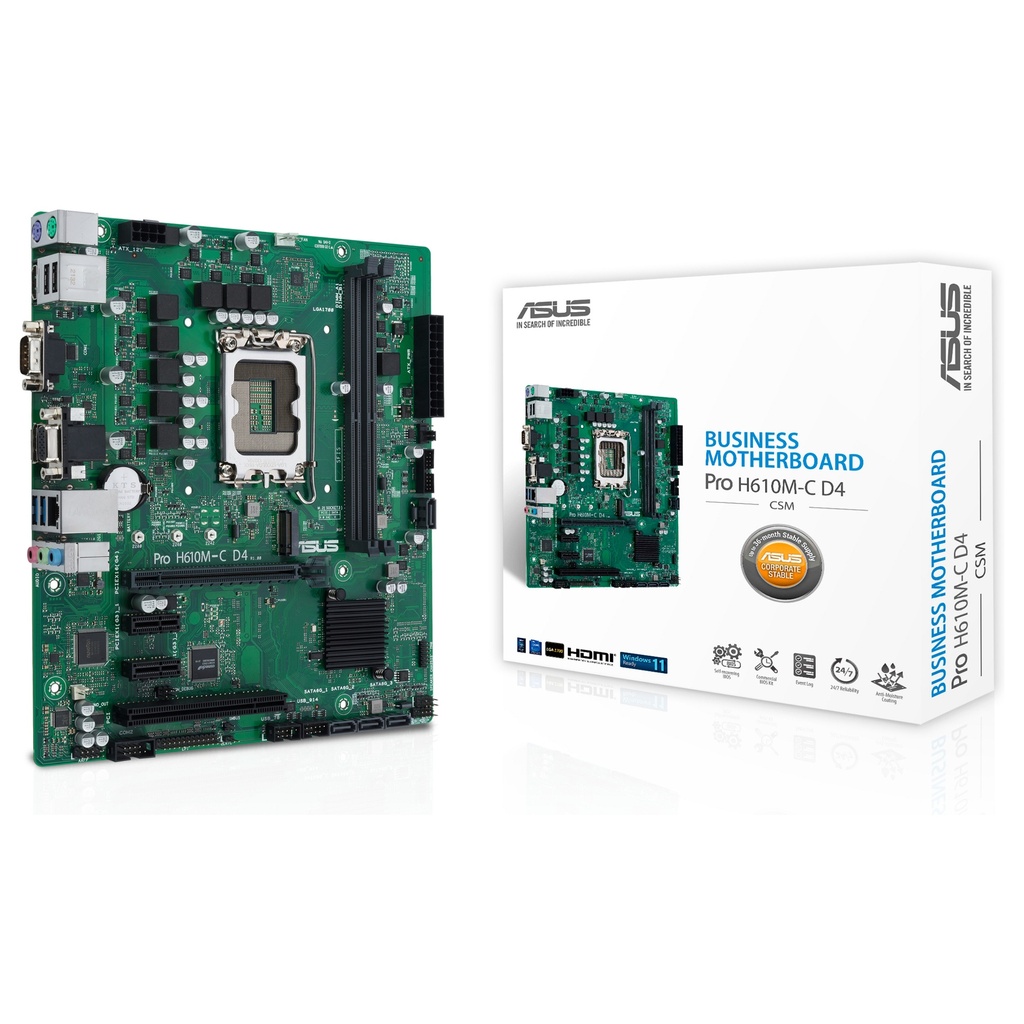

1700 ASUS PRO H610M-C-CSM DDR4
ASUS PRO H610M-C D4-CSM. Prozessorhersteller: Intel, Prozessorsockel: LGA 1700, Kompatible Prozessoren: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®. Unterstützte Arbeitsspeicher: DDR4-SDRAM, RAM-Speicher maximal: 64 GB, Arbeitsspeicher Typ: DIMM. Unterstützte Speicherlaufwerk-Schnittstellen: M.2, SATA III, Unterstützte Speicherlaufwerke: HDD & SSD. Ethernet Schnittstellen Typ: Gigabit Ethernet. Komponente für: PC, Motherboardformfaktor: micro ATX, Motherboard Chipsatz Familie: Intel
SKU :
129771Barcode :
4711081699132MPN :
90MB1A30-M0EAYCWebsite Product Category :
PC MotherboardsProzessorhersteller: Intel
Prozessorsockel: LGA 1700
Kompatible Prozessoren: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Maximale Anzahl an SMP-Prozessoren: 1
Speicher
Unterstützte Arbeitsspeicher: DDR4-SDRAM
Anzahl der Speichersteckplätze: 2
Arbeitsspeicher Typ: DIMM
ECC-Kompatibilität: Nicht-ECC
Unterstützte Arbeitsspeichergeschwindigkeit: 2133,2400,2666,2800,2933,3000,3200 MHz
RAM-Speicher maximal: 64 GB
Unbuffered Speicher: Ja
Speicher-Controller
Unterstützte Speicherlaufwerke: HDD & SSD
Unterstützte Speicherlaufwerk-Schnittstellen: M.2, SATA III
Grafik
Parallele Verarbeitungstechnologie: Nicht unterstützt
Anzahl der Display unterstützt: 3
Interne E/A-Anschlüsse
Anzahl USB 2.0 Schnittstellen: 2
USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse: 1
SATA III Anschlüsse: 4
Front Panel Audiostecker: Ja
ATX Stromstecker (24-pol.): Ja
CPU Ventilatorstecker: Ja
Zahl der Chassisventilatorstecker: 1
Chassis Intrusion Stecker: Ja
EPS Stromstecker (8-pin): Ja
Zahl der COM Stecker: 1
TPM-Anschluss: Ja
12-V-Stromanschluss: Ja
E/A-Anschlüsse auf der Rückseite
Anzahl USB 2.0 Anschlüsse: 2
USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A: 2
Anzahl Ethernet-LAN-Anschlüsse (RJ-45): 1
Anzahl PS/2 Anschlüsse: 2
Anzahl VGA (D-Sub) Anschlüsse: 1
Anzahl HDMI-Anschlüsse: 1
HDMI-Version: 2.1
Anzahl DisplayPort Anschlüsse: 1
DisplayPorts-Version: 1.4
Anzahl COM-Anschlüsse: 1
Netzwerk
Ethernet/LAN: Ja
Ethernet Schnittstellen Typ: Gigabit Ethernet
Wake-on-LAN bereit: Ja
WLAN: Nein
Merkmale
Motherboard Chipsatz: Intel H610
Audio Kanäle: 7.1 Kanäle
Komponente für: PC
Motherboardformfaktor: micro ATX
Motherboard Chipsatz Familie: Intel
Unterstützt Windows-Betriebssysteme: Windows 10 x64, Windows 11 x64
Erweiterungssteckplätze
PCI-Express x1 (Gen 3.x)-Anschlüsse: 2
PCI Express x16-Steckplätze (Gen 4.x): 1
Anzahl der M.2 (M)-Steckplätze: 1
BIOS
BIOS-Typ: UEFI AMI
BIOS-Speichergröße: 128 Mbit
Logistikdaten
Warentarifnummer (HS): 84733020
Gewicht und Abmessungen
Breite: 244 mm
Tiefe: 220 mm
Höhe: 221 mm
Lieferumfang
Mitgelieferte Kabel: SATA
Treiber enthalten: Ja
Sonstige Funktionen
Gewicht: 382 g
| Manufacturer | ASUS |
