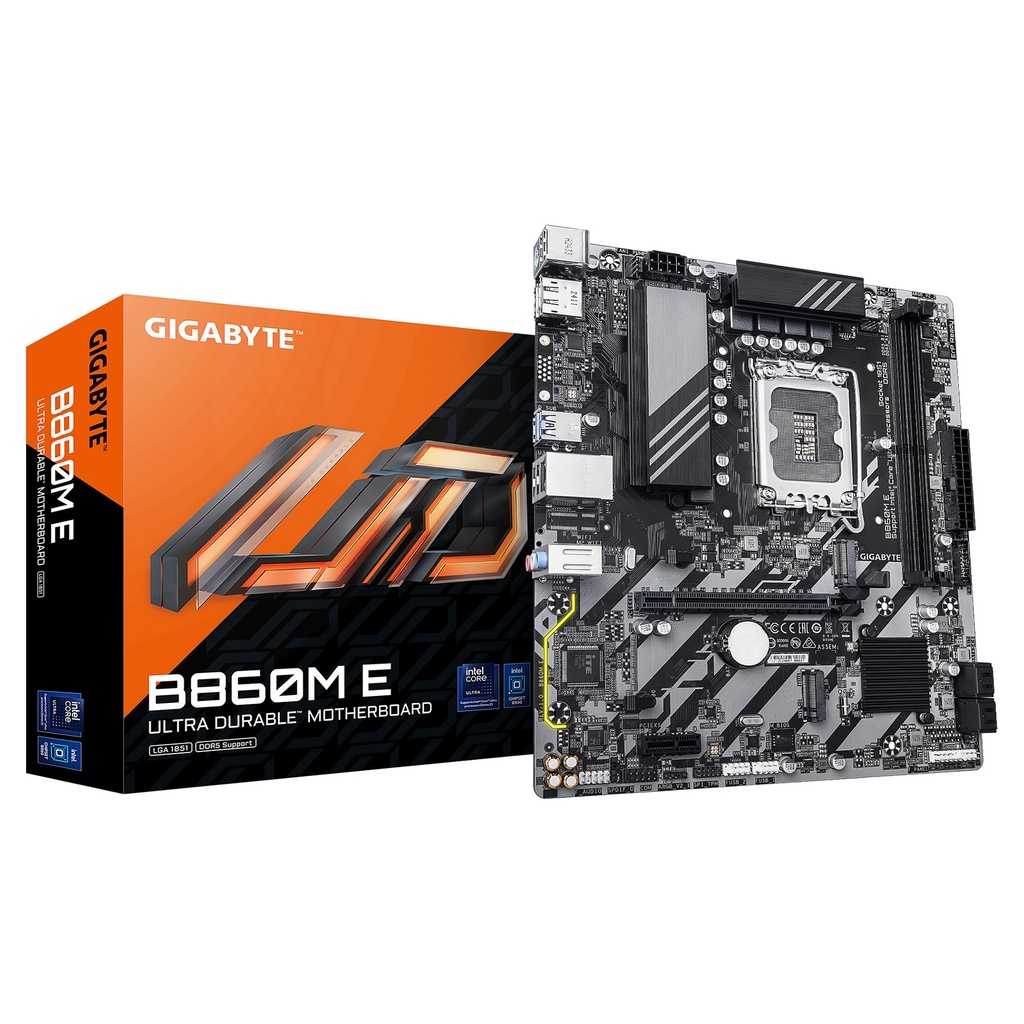

Gigabyte B860M E (1851) (D)
GIGABYTE B860M E Mainboard - Intel Core Ultra Series CPUs, 4+1+2 Phasen VRM, bis zu 8800MHz DDR5 (O.C), 2xPCIe 4.0 M.2, 1GbE LAN, USB 3.2 Gen 1. Prozessorhersteller: Intel, Prozessorsockel: LGA 1851 (Socket V1), Kompatible Prozessoren: Intel Core Ultra (Series 2). Unterstützte Arbeitsspeicher: DDR5-SDRAM, RAM-Speicher maximal: 128 GB, Arbeitsspeicher Typ: DIMM. Unterstützte Speicherlaufwerk-Schnittstellen: M.2, PCI Express 4.0, SATA III, Unterstützte Speicherlaufwerke: HDD & SSD, RAID Level: 0, 1, 5, 10. Maximale Auflösung: 4096 x 2160 Pixel. Ethernet Schnittstellen Typ: Gigabit Ethernet, LAN-Controller: Realtek RTL8111H
Εσωτερικός Κωδικός :
21155817Barcode :
4719331868260MPN :
B860M EΚατηγορία Είδους για Ιστότοπο :
Μητρικές ΥπολογιστήProzessorhersteller: Intel
Prozessorsockel: LGA 1851 (Socket V1)
Kompatible Prozessoren: Intel Core Ultra (Series 2)
Unterstützte Prozessorsteckplätze: LGA 1851
Speicher
Unterstützte Arbeitsspeicher: DDR5-SDRAM
Anzahl der Speichersteckplätze: 2
Arbeitsspeicher Typ: DIMM
Speicherkanäle: Zweikanalig
ECC-Kompatibilität: ECC & Nicht-ECC
Unterstützte Arbeitsspeichergeschwindigkeit: 8800,8600,8400,8266,8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,5600 MHz
Unterstützte Speichertaktrate (max.): 8800 MHz
RAM-Speicher maximal: 128 GB
Unbuffered Speicher: Ja
Maximaler interner Speicher pro Steckplatz: 64 GB
Speicher-Controller
Unterstützte Speicherlaufwerke: HDD & SSD
Unterstützte Speicherlaufwerk-Schnittstellen: M.2, PCI Express 4.0, SATA III
Maximale unterstützte Anzahl der HDD: 4
Anzahl der unterstützten Speicherlaufwerke: 6
RAID-Unterstützung: Ja
RAID Level: 0, 1, 5, 10
Grafik
Parallele Verarbeitungstechnologie: Nicht unterstützt
Maximale Auflösung: 4096 x 2160 Pixel
HDCP: Ja
HDCP-Version: 2.3
DirectX-Version: 12.0
Interne E/A-Anschlüsse
Anzahl USB 2.0 Schnittstellen: 2
USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse: 1
SATA III Anschlüsse: 4
S/PDIF aus Stecker: Ja
Front Panel Audiostecker: Ja
Frontpanel-Stecker: Ja
ATX Stromstecker (24-pol.): Ja
CPU Ventilatorstecker: Ja
Anzahl der CPU-Lüfteranschlüsse: 2
Zahl der Chassisventilatorstecker: 1
EPS Stromstecker (8-pin): Ja
Anzahl der EPS-Stromanschlüsse (4--polig): 1
TPM-Anschluss: Ja
Serielle Port-Headers: 1
12-V-Stromanschluss: Ja
Anzahl der Wasserpumpenanschlüsse: 2
RGB-LED-Stiftleiste: Ja
Anzahl der RGB-LED-Stiftleisten: 2
E/A-Anschlüsse auf der Rückseite
Anzahl USB 2.0 Anschlüsse: 2
USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A: 4
Anzahl Ethernet-LAN-Anschlüsse (RJ-45): 1
Anzahl PS/2 Anschlüsse: 1
Anzahl HDMI-Anschlüsse: 1
HDMI-Version: 2.1
Anzahl DisplayPort Anschlüsse: 1
DisplayPorts-Version: 2.1
Kopfhörerausgänge: 1
Line-in: Ja
Mikrofon-Eingang: Ja
Netzwerk
Ethernet/LAN: Ja
Ethernet Schnittstellen Typ: Gigabit Ethernet
LAN-Controller: Realtek RTL8111H
WLAN: Nein
Merkmale
Motherboard Chipsatz: Intel B860
Audio-Chip: Realtek ALC897
Audio Kanäle: 7.1 Kanäle
Produktfarbe: Dark brown
PC Gesundheitsüberwachung: Ventilator, Temperatur, Spannung, Water cooling
Komponente für: PC
Motherboardformfaktor: micro ATX
Motherboard Chipsatz Familie: Intel
Kühlung: Passiv
Energiequelle: ATX
Unterstützt Windows-Betriebssysteme: Windows 10 x64, Windows 11 x64
Erweiterungssteckplätze
PCI-Express x1 (Gen 3.x)-Anschlüsse: 1
PCI Express x16-Steckplätze (Gen 4.x): 1
Anzahl der M.2 (M)-Steckplätze: 2
1. M.2 größte Schlüsselgröße: 2280
1. M.2 höchste PCI Express-Generation: 4.0
2. M.2 größte Schlüsselgröße: 2280
2. M.2 höchste PCI Express-Generation: 4.0
BIOS
BIOS-Typ: UEFI AMI
BIOS-Speichergröße: 256 Mbit
ACPI-Version: 5.0
Clear CMOS-Jumper: Ja
Desktop Management Interface (DMI) Version: 2.7
Systemverwaltung BIOS (SMBIOS) Version: 2.7
Logistikdaten
Ursprungsland: China
Menge pro Versandkarton: 1 Stück(e)
Akku/Batterie
Batteriegewicht: 3 g
Lithiumgewicht pro Akku: 0,07 g
Anzahl Batteriezellen: 1
Akku-/Batterietechnologie: Lithium-Manganese Dioxide (LiMnO2)
Akku-/Batterietyp: CR2032
Verpackungsdaten
Verpackungsbreite: 265 mm
Verpackungstiefe: 265 mm
Verpackungshöhe: 54 mm
Paketgewicht: 972,4 g
Gewicht und Abmessungen
Breite: 244 mm
Tiefe: 215 mm
Höhe: 35 mm
Lieferumfang
Akkus/Batterien enthalten: Ja
Schrauben enthalten: Ja
Mitgelieferte Software: Norton® Internet Security (OEM version); LAN bandwidth management software
Sonstige Funktionen
Gewicht: 890 g
Technische Details
Garantiezeit: 3 Jahr(e)
