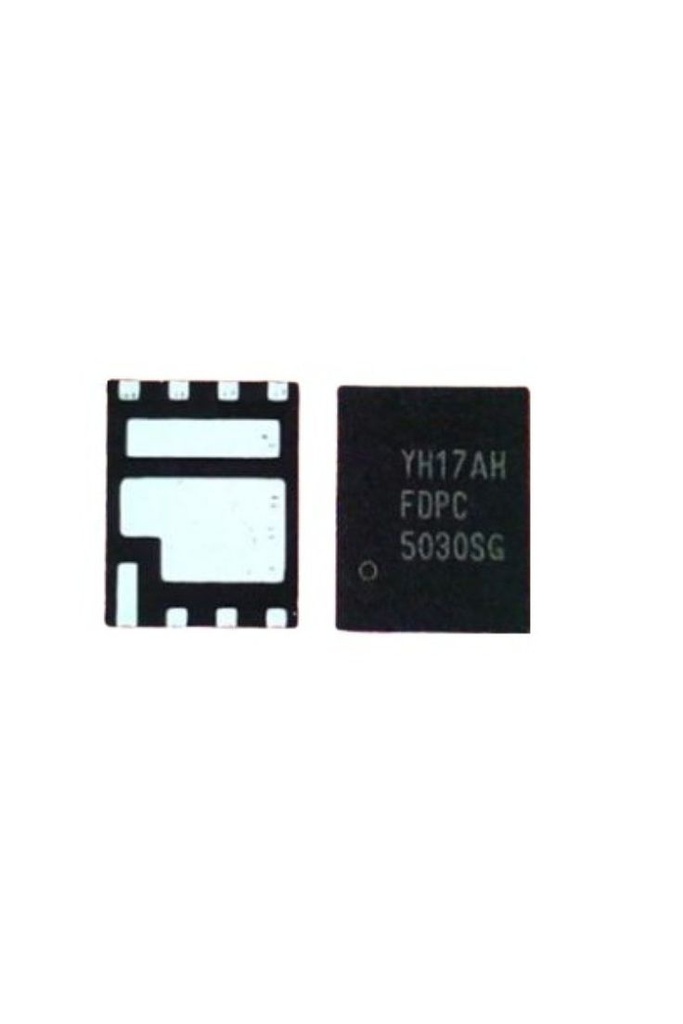

FDPC5030SG - MOSFETs PT8+ N & PT8 N
FDPC5030SG - MOSFETs PT8+ N & PT8 N - Brand New
Manufacturer: onsemi
Product Category: MOSFETs
Technology: Si
Mounting Style: SMD/SMT
Package/Case: Power-56-8
Transistor Polarity: N-Channel
Number of Channels: 2 Channel
Vds - Drain-Source Breakdown Voltage: 30 V
Id - Continuous Drain Current: 56 A, 84 A
Rds On - Drain-Source Resistance: 7 mOhms, 3.4 mOhms
Vgs - Gate-Source Voltage: - 20 V, + 20 V, - 12 V, + 12 V
Vgs th - Gate-Source Threshold Voltage: 1 V
Qg - Gate Charge: 17 nC, 39 nC
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 150 C
Pd - Power Dissipation: 23 W, 25 W
Channel Mode: Enhancement
Tradename: Power Trench Power Clip
Packaging: Reel
Packaging: Cut Tape
Packaging: MouseReel
Brand: onsemi / Fairchild
Configuration: Dual
Fall Time: 2 ns, 3 ns
Forward Transconductance - Min: 93 S, 139 S
Height: 1.1 mm
Length: 6 mm
Product Type: MOSFETs
Rise Time: 2 ns, 4 ns
Series: FDPC5030SG
Factory Pack Quantity: 3000
Subcategory: Transistors
Typical Turn-Off Delay Time: 18 ns, 30 ns
Typical Turn-On Delay Time: 8 ns, 10 ns
Width: 5 mm
Unit Weight: 207,730 mg
