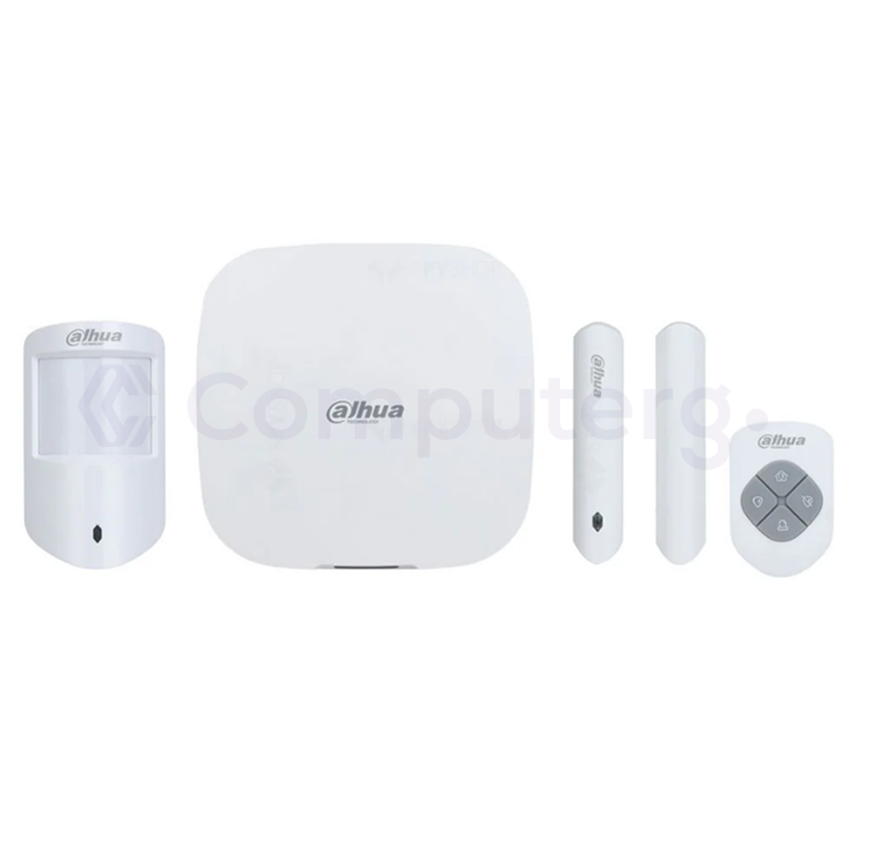

Dahua Alarm Hub 1 Kit WiFi/GSM (Hub+PIR+Keyfob+Door) ARC3000H-03-GW2 (868MHz)
Supports 150 wireless peripherals (6 sirens, 64 wireless keyfobs).
Peripherals status display (signal strength, battery level, temperature, program version)
Wired, Wi-Fi or GPRS network connection
Dual SIM and Single Standby, auto switching
Automatic network replenishment (ANR)
Video linkage on App
SOS emergency alarm
Frequency hopping function and two-way communication technology ensure communication stability
Cloud update and automatic recovery from update failure
Shipping & Payment Info
DetailsInput and Output
- Wireless Protection Zone : Hub: 150-channel wireless peripherals (6 sirens, 64 wireless keyfobs)
Port
- Buzzer : Hub: Built-in
- Button : Hub: 1 Ă— reset, 1 Ă— power, 1 Ă— AP / Keyfob: 4 (Home, Away, Disarm, and SOS) / Door Detector: 1 Ă— power button / PIR Detector: 1 Ă— power button
- Indicator Light
- Hub: 1 for multiple statuses (alarm, arming, disarming, networking, and malfunction)
- Keyfob: 1 Ă— two-color status indicator (green: normal, red: abnormal)
- Door Detector: 1 Ă— green alarm indicator
- PIR Detector: 1 Ă— green alarm indicator
- Storage battery : Hub: Built-in lithium battery
- Network Mode : Hub: Single SIM (GSM:900/1800MHz); dual SIM single standby
- Network Port : Hub: 1 Ă— RJ-45 10 M/100 M Ethernet port
Function
- Network Protocol : Hub: TCP/IP, including PPTP, L2TP, DHCP, UPNP, and NTP
- Offline Cache : Hub: Max. 50 entries (ANR)
- Power Failure Protection for Configured Parameters : Hub: Yes
- Remote Update : All: Cloud update
- Video Linkage : Hub: Yes
- SMS : Hub: Yes (up to 5 phone numbers)
- Phone Call : Hub: Yes (up to 5 phone numbers)
- Low Battery Alarm : All: Yes
- Tamper Alarm : Hub: Yes / Door Detector: Yes / PIR Detector: Yes
- User Management : Hub: Share function for App users
- Search : Hub: Searching push messages, device status, and program version. Detecting signal strength / Keyfob: Signal strength detection / Door Detector: Signal strength detection / PIR Detector: Signal strength detection
- Arm and Disarm : Hub: App; keyfob; schedule
Wireless
- Carrier Frequency : All: 868.0 MHz–868.6 MHz
- Communication Distance : Hub: Up to 2,000 m in an open space / Keyfob: Up to 900 m in an open space / Door Detector: Up to 1,200 m in an open space / PIR Detector: Up to 1,600 m in an open space
- Communication Mechanism : All: Two-way
- Encryption Mode : All: AES128
- Frequency Hopping : All: Yes
- Wi-Fi : Hub: 2.4G
Peripherals
- External Zone : Door Detector: 1-channel dry contact input
Temperature
- Measuring Range (Temperature) : Door Detector: –15 °C to +65 °C (indoor) / PIR Detector: –15 °C to +65 °C (indoor)
- Measuring Precision (Temperature) : Door Detector: ± 1 °C / PIR Detector: ± 1 °C
- Resolution (Temperature) : Door Detector: 1 °C / PIR Detector: 1 °C
Specification
- Sensor : Door Detector: Reed switch / PIR Detector: Dual elements low-noise PIR sensor
- Test Mode : Door Detector: Yes / PIR Detector: Yes
- Scenario : Door Detector: Non-metal doors
- Movement Distance : Door Detector: < 40 mm
- Detection Mode : PIR Detector: PIR
- Detection Range : PIR Detector: 12 m (90°) with installtion height of 2.2 m
- Detection Speed : PIR Detector: 0.3 m/s–3 m/sÂ
- Pet Immunity Level : PIR Detector: ≤ 18 kg (39.68 lb)
- White Light Resistance Level : PIR Detector: 6500 lx
- Two-way Digital Temperature Compensation : PIR Detector: Yes, no attenuation of detection distance in high temperature
- Sensitivity : PIR Detector: 3 levels adjustable
General
- Power Supply : Hub: 12 V DC, 1.5 A (Europe, UK and USA power adapters are optional) / Keyfob: CR2032 battery / Door Detector: CR123A battery / PIR Detector: CR123A battery
- Battery Life : Hub: Storage battery standby for 12 Hours / Keyfob: 5 years / Door Detector: 5 years / PIR Detector: 4 years
- Power Consumption : Keyfob: Max. 85 mW / Door Detector: Max. 70 mW / PIR Detector: Max. 75 mW
- Operating environment : Hub: –10 °C to +50 °C (indoor) / Keyfob: –10 °C to +55 °C (indoor) / Door Detector: –10 °C to +55 °C (indoor) / PIR Detector: –10 °C to +55 °C (indoor)
- Operating Humidity : All: 10%–90% (RH)
- Product Dimensions : Hub: 163.0 mm × 163.0 mm × 32.0 mm (L × W × H) / Keyfob: 60.0 mm × 39.5 mm × 15.0 mm (L × W × H) / Door Detector: 100.2 mm × 20.8 mm × 20.3 mm (L × W × H) / PIR Detector: 104.0 mm × 60.0 mm × 50.0 mm (L × W × H)
Installation
- Hub: Wall mount; Desktop
- Door Detector: Bracket mount
- PIR Detector: Wall mount
Net Weight
- Hub: 0.38 KgÂ
- Keyfob: 20 gÂ
- Door Detector: 70 gÂ
- PIR Detector: 100 g
Gross Weight
- Hub: 0.8 KgÂ
- Keyfob: 65 gÂ
- Door Detector: 115 gÂ
- PIR Detector: 170 gÂ
Casing
- All: PC + ABS
Certifications
- All: CE
